Mã sản phẩm:
Thương hiệu:
Đầu đọc dòng SV810.
– Chip xử lý Impinj E710.
– Tốc độ kiểm kê tối đa 800 thẻ/giây.
– Hỗ trợ kiểm kê chống va chạm nhiều cổng ăng-ten.
– Hỗ trợ khoảng cách tín hiệu thẻ nhận dạng RSSI.
– Hỗ trợ nhiều ngôn ngữ lập trình C#, Java, VC.
– Ứng dụng: Quản lý kho hàng, Kiểm soát sản xuất.
Products Specification
| RFID Technical Parameter | Data Communication | |||
| Engine | Impinj E710 chip | Standard Interface | USB、RS232、TCP/IP、GPIO | |
| Frequency | 902~928MHz (US）865~868MHz (EU） | Customized Interface | POE (mode A/mode B af) | |
| Protocol | ISO18000-6C (EPC GEN2) | GPIO interface | 2 sets of GPI & 2 sets of GPO | |
| RF Output Power | 0dbm—33dbm(adjustable) | Antenna Port | 4 Channel RP TNC Female | |
| Inventory speed | 1100 tags/s | Power Supply | 12V 2A | |
| Data Cache | 600pcs @ 128bits EPC | Current consumption | 0.5~1.2A | |
| Reading Distance | 0—25 meter | Development Environment | ||
| Anti-collision | Multi-antenna ports polling fast inventory | SDK | Include Demo software, API,Sample,User Manual | |
| Work Mode | Active mode Answer mode | Development language | Support C#, java-jni, java-linux,VC,Android | |
| RSSI | Support | Hardware Firmware | Support Remote upgrade | |
| Physical Specification | Working Environment | |||
| Material | Die-cast Aluminum | IP grade | IP55 | |

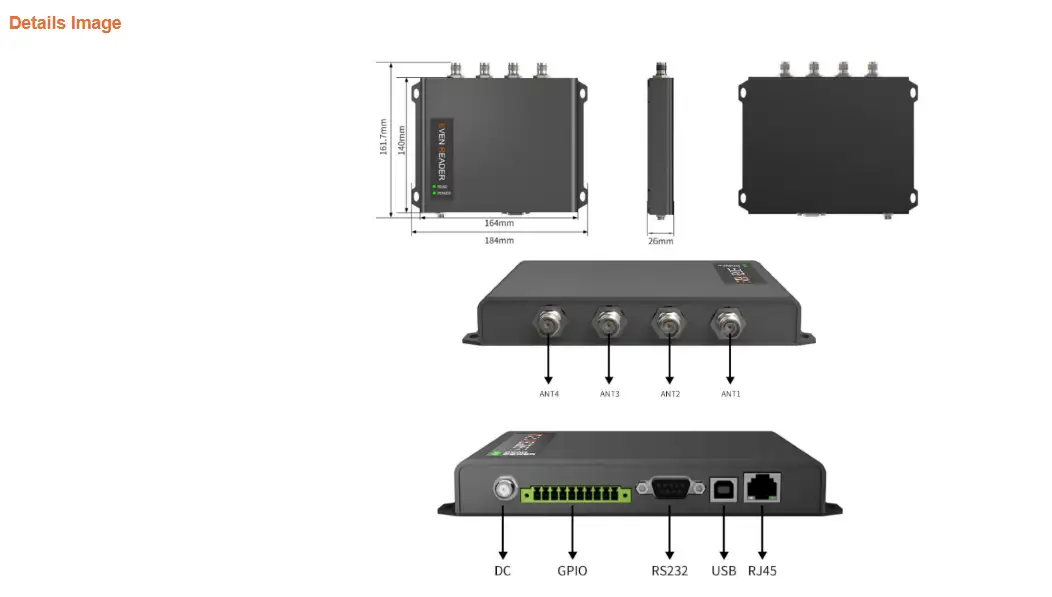

| Dimension | 184*161.7*26mm | Operating temperature | -10-+60℃ | |
| Net Weight | 0.6kg | Storage temperature | -20-+75℃ | |
| Package size | 200*255*100mm | |||
| Gross weight | 1.3kg | |||
GPIO Pins Definition | ||
| NO | Symbol | Content |
| 1 | Output1R | Universal optocoupler isolated output 1+ |
| 2 | Output1L | Universal optocoupler isolated output 1- |
| 3 | Output2R | Universal optocoupler isolated output 2+ |
| 4 | Output2L | Universal optocoupler isolated output 2- |
| 5 | GND | Signal ground |
| 6 | Input1＋ | Universal optocoupler isolation input 1+ |
| 7 | Input1- | Universal optocoupler isolation input 1- |
| 8 | Input2＋ | Universal optocoupler isolated input 2+ |
| 9 | Input2- | Universal optocoupler isolation input 2- |
| 10 | GND | Signal ground |
| RS232 D89 Pins Definition | ||
| NO | Symbol | Content |
| 1 | NC | reserve |
| 2 | RXD | RS232 data input |
| 3 | TXD | RS232 data output |
| 4 | NC | reserve |
| 5 | GND | grounding |
| 6 | NC | reserve |
| 7 | NC | reserve |
| 8 | NC | reserve |
| 9 | NC | reserve |
