Mã sản phẩm:
Thương hiệu:
Đầu đọc nhanh dòng SV6A3E.
RS232, WG26, RELAY, POWER, TCP/IP, POE.
– Giao thức: ISO18000-6C (EPC GEN2).
– Tần số: 902~928MHz (Mỹ).
– Ăng-ten tích hợp: Ăng-ten tròn 9dbi.
– Khoảng cách đọc: 0~20m (tùy thuộc vào thẻ và
môi trường làm việc).
– Chip D17: Chip Impinj E710.
– Quản lý kho, Quản lý bán lẻ, Quản lý phương tiện, Quản lý kiểm soát ra vào, Quản lý dây chuyền sản xuất, Quản lý cân nặng.
Product Specifications
| RFID Technical Parameters | Data Communication | |||
| Frequency | 902~928MHz（US） 865~868MHz（EU） | Standard interface | RS232, WG, relay, power | |
| Protocol | ISO18000-6C (EPC GEN2) | Optional interface | TCP/IP, POE, WIFI | |
| RF output power | 0dbm-26dbm(Adjustable) | Customizable interface | USB, TTL, RS485 | |
| Built-in antenna | 9.2dBi | Power supply | 12V 2A | |
| Polarization mode | Circular polarization | Card reading prompt tone | Buzzer | |
| Reading distance | 0-10 meters | Indicator light | Strip light, red & green | |
| Special functions | Support password/mask function | Development Environment | ||
| Working mode | Active mode Trigger mode Answer mode | SDK | Demo software, API, examples, user manuals | |
| RSSI | support | Development language | C#, Delphi, Java, Python, VB and other languages | |
| Physical parameters | Firmware version | Support online upgrade | ||
| Material | Die-cast aluminum | WIFI（optional） | ||
| Color | White / Black (customized) | Frequency range | 2.4G-2.5G(2400M~2483.5M) | |
| Dimensions | 280*280*75mm | Transmit power | 802.11b:+20dBm 802.11g:+17dBm 802.11n:+14dBm | |
| Net Weight | 2kg | Receiver sensitivity | 802.11b:-91dBm(11Mbps) 802.11g:-75dBm(54Mbps) 802.11n:-72dBm(MCS7) | |
| Working environment | Security Mechanism | WPA/WPA2 | ||
| IP protection level | IP65 | Network Protocol | IPv4、TCP/UDP | |
| Operating temperature | -10~+55℃ | User Configuration | Web | |
| Storage temperature | -20~+75℃ | |||

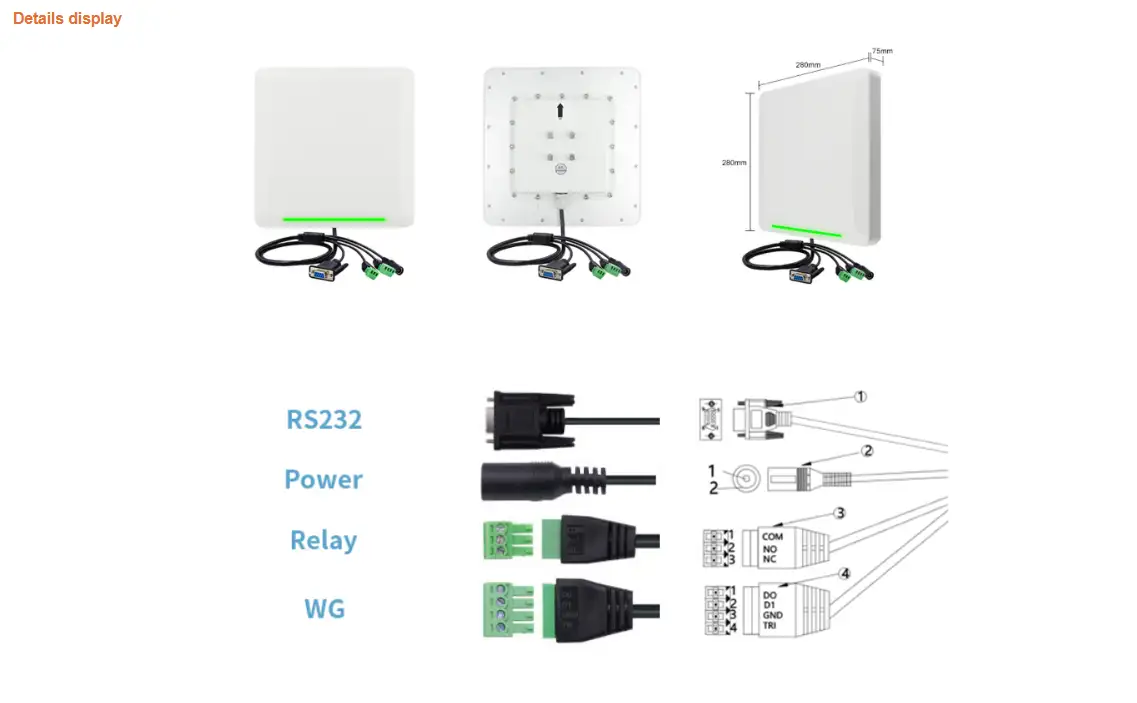

Standard interface wiring definition | |||||||||||
Power | RS232 | WG | Relay | ||||||||
12V | GND | TX | RX | GND | D0 | D1 | GND | TGIN | NO | NC | COM |
Red | black | Light green | yellow | pink | green | White | brown | blue | Purple | orange | grey |
| Model Definition | |
| model | Interfaces |
| CF6B1 | RS232, WG, relay, power |
| CF6B2 | RS232, WG, relay, power, TCP/IP |
| CF6B3 | RS232, WG, relay, power, POE |
| CF6B4 | RS232, WG, relay, power, WIFI |
| CF6B5 | RS232, WG, relay, power, TCP/IP, WIFI |
